SKU: CS2_JN14853

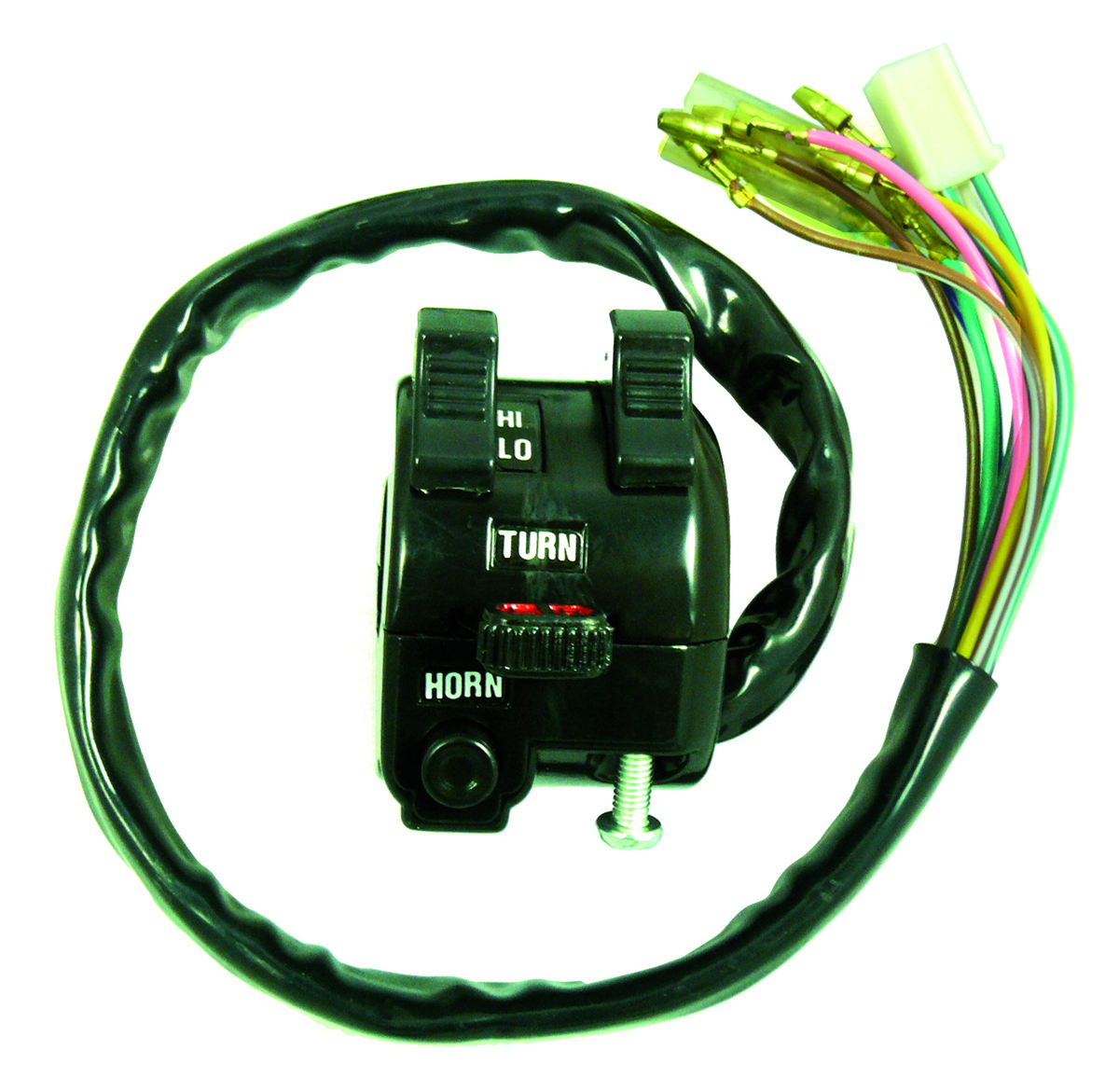

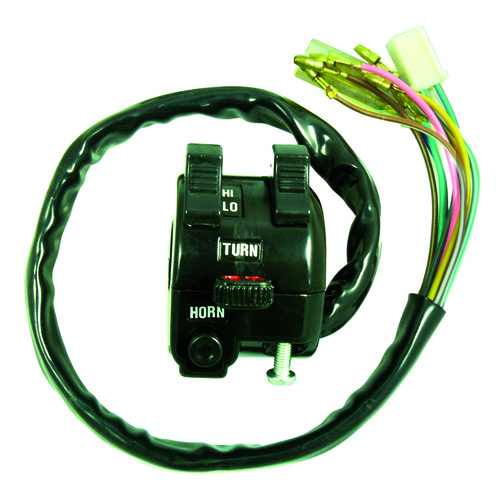

Left Hand Switch Block Cluster |Vintage | Cafe Racer| Classic| Bobber| Scrambler
$42.95
RRP $49.40
SAVE $6.45 (13%)
Out of Stock
Description
- Left Hand Switch Block for early Yamaha's
- Metal body
- Plastic coating on outside - powder coated
- This left hand switch is for 7/8" or 22mm bars - ie, standard bars only
Covers all the usual functions:
- Headlight ON/OFF
- Low Beam
- High Beam
- Park Light Switch
- Indicator Switch Left/Right * THE INDICATORS DO NOT SELF CANCEL! No 'Push to cancel' function
- Horn
- Wiring as follows:
- Yellow/White - Power to H/lamp ON/OFF
- Green - Low Beam
- Yellow - High Beam
- Dark Blue - Parker Lamp /Dash Lamps
- Brown / White - Power for flasher Relay
- Brown - L/H Flasher
- Dark Green - R/H Flasher
- Pink - Horn
- White to Green/White - H/Lamp Switch Off
- White to Green/Red - H/Lamp Switch On
- Switch Body is Earth........ Sometimes a separate earth wire will be required - rubber mounted bars for example
This is a 'Generic' copy of an early Yamaha switch block and some minor rewiring MAY be required.
- Installation Guide supplied.
Specifications
| SKU | CS2_JN14853 |
| Brand | MCS |
| Shipping Weight | 0.2155kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
